Jazz Boxes
3 Solid Choices
Fans of traditional or modern jazz will feel right at home with our handcrafted take on archtop guitars. We’ve brought classic designs to life and into the hands of legendary players like John Pisano and Frank Vignola. Eastman offers three different construction options with three different sounds and functionalities.
All Solid Carved Series
Models & Specs
All Solid Carved Series
EBD1
Choose your finish
- Neck Material:Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass-.078" & Treble-.062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:17" x 3 1/8
- Body Top:Solid Spruce
- Body Back/Sides:Solid Handcarved Maple
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, F-Holes, Headstock
- Binding Material:Maple
- Logo:Pearl Headstock
- Inlay:N/A
- Side Dot Color:Black
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Maple Binding
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Schaller E-M6Ga
- Knobs:N/A
- Neck Pickup:Lollar Floating Johnny Smith
- Bridge Pickup:N/A
- Pickup Height:3/32"
- Capacitors:0.047μF
- Potentiometers:500k Linear Thumbwheel
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
- Available Colors:Blonde
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR910CE? Please provide your information below and we’ll be in touch shortly.
EBD1
Choose your finish
- Neck Material:Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass-.078" & Treble-.062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16" X 3-1/4"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Handcarved Maple
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, F-Holes, Headstock
- Binding Material:Maple
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Maple Binding
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Schaller E-M6Ga
- Neck Pickup:Lollar Floating Johnny Smith
- Capacitors:0.047μF
- Potentiometers:500k Linear Thumbwheel
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More

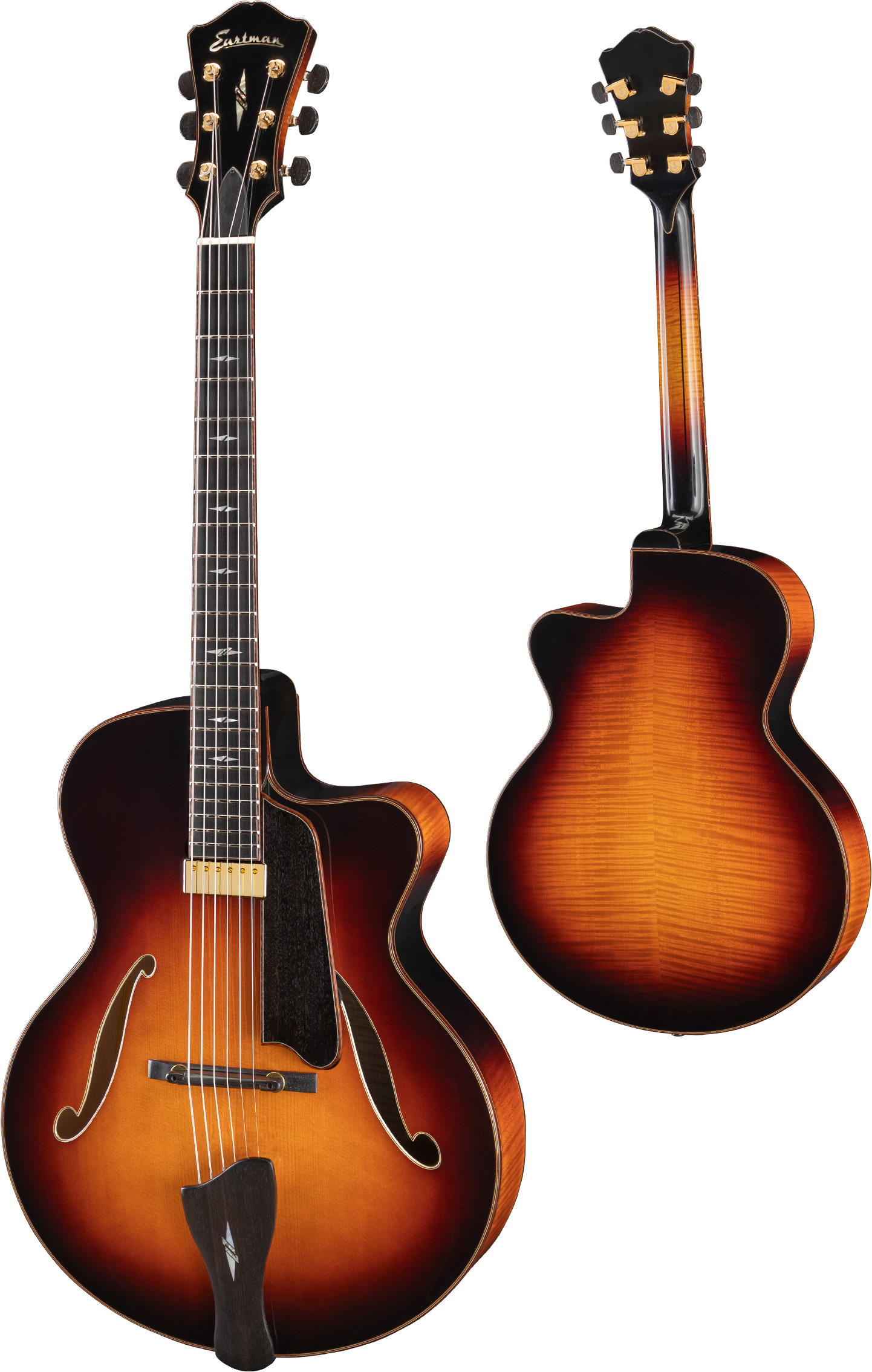

Have a question or want to know more about the AR905CE? Please provide your information below and we’ll be in touch shortly.
BCL1
CSB1
Choose your finish
- Neck Material:Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st String Height:.022"
- 12th String Height:Bass .078" & Treble .062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:17" x 3 1/8
- Body Top:Solid Spruce
- Body Back/Sides:Solid Handcarved Maple
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, F-Holes, Headstock
- Binding Material:7 ply Ivoroid
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Ivoroid Binding
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Gold with Ebony SG360-EN01GG
- Neck Pickup:Lollar Custom Wound Imperial Humbucker
- Pickup Height:3/32"
- Capacitors:0.047μF
- Potentiometers:CTS 500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR810CE? Please provide your information below and we’ll be in touch shortly.
CSB1
BCL1
Choose your finish
- Neck Material:Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078 and Treble .062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16" X 3-1/4"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Handcarved Maple
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, F-Holes, Headstock
- Binding Material:7 ply Ivoroid
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Ivoroid Binding
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Gold with Ebony SG360-EN01GG
- Neck Pickup:Lollar Custom Wound Imperial Humbucker
- Pickup Height:3/32"
- Capacitors:0.047μF
- Potentiometers:CTS 500K LinearTaper
- Output Jack:Switchcraft 6J1226
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR805CE? Please provide your information below and we’ll be in touch shortly.
BCL1
Choose your finish
- Neck Material:Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" and & Treble .062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Non-cutaway jazz guitar
- Body Dimensions:16" X 3-1/4"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Handcarved Maple
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, F-Holes, Headstock
- Binding Material:7 ply Ivoroid
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Gold with Ebony SG360-EN01GG
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR805? Please provide your information below and we’ll be in touch shortly.
CSB1
Choose your finish
- Neck Material:Mahogany
- Fingerboard:Rosewood
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" & Bass .062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Non-cutaway jazz guitar
- Body Dimensions:17" x 3 1/8"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Mahogany
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, Headstock
- Binding Material:Ivoroid(top)/Black 3 ply.
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Tailpiece:Rosewood on Brass
- Bridge:Adjustable Rosewood Bridge
- Tuners:Pingwell RM-1271
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR610? Please provide your information below and we’ll be in touch shortly.
DCS1
BCL1
Choose your finish
- Neck Material:Mahogany
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass - .078" & Treble - .062
- Fretwire:22 Medium Jumbo Jescar 47104-P
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16" X 3-1/4"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Mahogany
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, Headstock
- Binding Material:Ivoroid (Top) / Black 3 ply
- Logo:Pearl Headstock
- Side Dot Color:Black
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Ivoroid Binding
- Tailpiece:Rosewood on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Nickel with Ebony SG360-EN01
- Neck Pickup:Seymour Duncan Seth Lover
- Bridge Pickup:Seymour Duncan Seth Lover
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- 3 Way Switch:Switchcraft 12120X
- Switch Tip:Switchcraft Black
- Capacitors:.022" ohms
- Potentiometers:500k Linear Thumbwheel
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR605CED? Please provide your information below and we’ll be in touch shortly.
BCL1
DCS1
Choose your finish
- Neck Material:Mahogany
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" & Treble .062"
- Fretwire:22 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:15" x 2 3/4"
- Body Top:Solid Spruce
- Body Back/Sides:Solid Mahogany
- Truss Rod:Single Acting
- Binding:Top, Back Fingerboard, Headstock
- Binding Material:Ivoroid(top)/Black 3 ply.
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Ivoroid Binding
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Gotoh Bridge
- Tuners:Gotoh Nickel with Ebony SG360-EN01
- Neck Pickup:Seymour Duncan Seth Lover
- Bridge Pickup:Seymour Duncan Seth Lover
- Pickup Height:3/32"
- Capacitors:0.022μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Action Height:3/32" 12th fret bass, 2/32" 12th fret treble
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR603CED-15? Please provide your information below and we’ll be in touch shortly.
Solid Carved Top Series
Models & Specs
Solid Carved Top Series

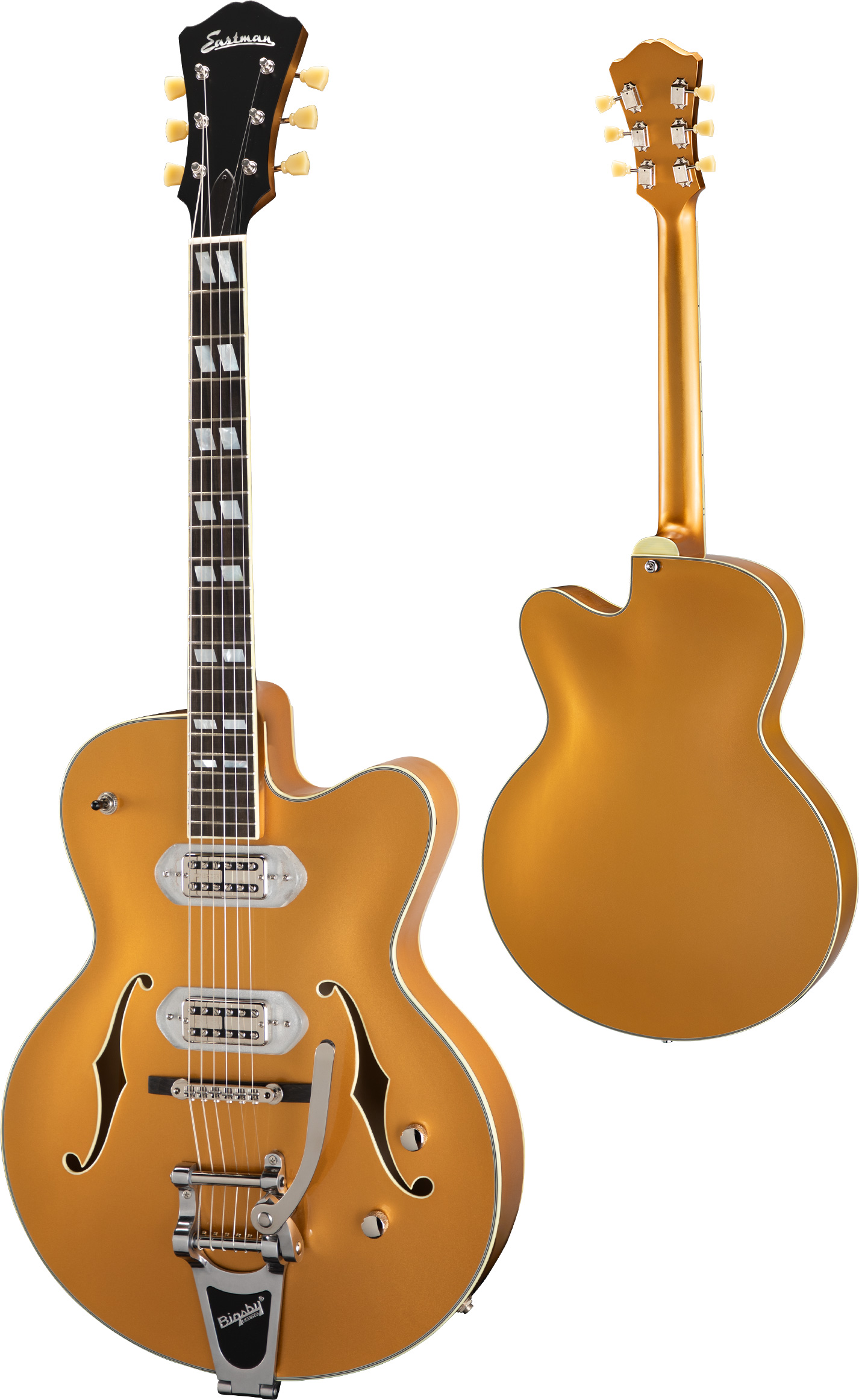

UAV2
Choose your finish
- Neck Material:3 Piece Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 11/16"
- 1st Fret String Height:.022"
- 12 Fret String Height:Bass .078" & Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16" x 2 9/16"
- Body Top:Solid Spruce
- Body Back/Sides:Laminated Flamed Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Maple
- Logo:Pearl Headstock
- Inlay:Pearl Split Block
- Finish:Antique Varnish
- Hardware Color:Aged Nickel
- Tailpiece:US Bigsby B6
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Relic Series SD90
- Knobs:Vintage Nickel
- Neck Pickup:TV Jones Classic Brushed Nickel
- Bridge Pickup:TV Jones Classic Brushed Nickel
- Pickup Height:3/32"
- Pickup Frame:Custom
- 3 Way Switch:Switchcraft
- Switch Tip:Nickel
- Capacitors:0.022μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D'addario NYXL .011 - .049
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the T58/v? Please provide your information below and we’ll be in touch shortly.
OHB1
Choose your finish
- Neck Material:3 Piece Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 11/16"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" & Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16" x 2 9/16"
- Body Top:Solid Spruce
- Body Back/Sides:Laminated Flamed Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Maple
- Logo:Pearl Headstock
- Inlay:Pearl Split Block
- Finish:Gloss Finish
- Hardware Color:Gold
- Pickguard:Ebony w/ Maple Binidng
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh SG360-EN01GG (gold w/ebony buttons)
- Knobs:Amber Speed Knobs
- Neck Pickup:Seymour Duncan Jazz
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- Capacitors:.047μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR580CE? Please provide your information below and we’ll be in touch shortly.
BCL1
CSB1
Choose your finish
- Neck Material:3 Piece Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12 Fret String Height:Bass .078" & Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16 3/16” x 2 9/16
- Body Top:Solid Spruce
- Body Back/Sides:Laminated Flamed Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Ivoroid
- Logo:Pearl Headstock
- Finish:Gloss Finish
- Hardware Color:Nickel
- Pickguard:Ebony
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Pingwell RM-1271 GVR 3+3
- Knobs:Amber Speed Knobs
- Neck Pickup:Seymour Duncan Seth Lover
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- Capacitors:.047μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR503CE? Please provide your information below and we’ll be in touch shortly.
Laminate Series
Models & Specs
Laminate Series
TAV1
Choose your finish
- Neck Material: 3 Piece Maple
- Fingerboard: Ebony
- Fingerboard Radius: 12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" & Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104
- Scale Length:24 3/4"
- Body Style:Florentine
- Body Dimensions:16" x 3 9/32"
- Body Top:Laminated Maple
- Body Back/Sides:Laminated Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Ivoroid
- Logo:Pearl Headstock
- Inlay:Pearl Split Block
- Finish:Antique Varnish
- Hardware Color:Aged Nickel
- Pickguard:3 Ply Plastic
- Tailpiece:Relic Nickel Plated Trapeze Style
- Bridge:Adjustable Ebony Bridge
- Tuners:Gotoh Relic Series SD90
- Knobs: Amber Speed Knobs
- Neck Pickup:Seymour Duncan Antiquity Humbucker
- Bridge Pickup:Seymour Duncan Antiquity Humbucker
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- Capacitors:0.047μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the T49D? Please provide your information below and we’ll be in touch shortly.
BCL1
CSB1
Choose your finish
- Neck Material:3 Piece Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078"& Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104
- Scale Length:24 3/4"
- Body Style:Florentine
- Body Dimensions:16” x 3 5/16”
- Body Top:Laminated Maple
- Body Back/Sides:Laminated Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Ivoroid
- Logo:Pearl Headstock
- Inlay:Pearl Split Block
- Finish:Gloss Finish
- Hardware Color:Nickel
- Pickguard:3 Ply Plastic
- Tailpiece:Chrome Plated Trapeze Style
- Bridge:Adjustable Rosewood Bridge
- Tuners:Pingwell RM-1271
- Knobs:Amber Speed Knobs
- Neck Pickup:Kent Armstrong HPAG-1
- Bridge Pickup:Kent Armstrong HPAG-1
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- 3 Way Switch:Switchcraft
- Switch Tip:Switchcraft Amber
- Capacitors:0.047μF
- Potentiometers:500k Linear Taper
- Output Jack:Switchcraft
- Strings:D’Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR372CE? Please provide your information below and we’ll be in touch shortly.
BCL1
CSB1
Choose your finish
- Neck Material:3 Piece Maple
- Fingerboard:Ebony
- Fingerboard Radius:12"
- Neck Profile:Traditional Even C
- Nut:Bone 1 3/4"
- 1st Fret String Height:.022"
- 12th Fret String Height:Bass .078" & Treble .062"
- Fretwire:20 Medium Jumbo Jescar 47104-P
- Scale Length:25"
- Body Style:Venetian
- Body Dimensions:16 3/16” x 2 9/16
- Body Top:Laminated Maple
- Body Back/Sides:Laminated Maple
- Truss Rod:Single Acting
- Binding:Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
- Binding Material:Ivoroid
- Logo:Pearl Headstock
- Inlay:Pearl Dots
- Side Dot Color:Black
- Finish:Gloss Finish
- Hardware Color:Nickel
- Pickguard:3 Ply Plastic
- Tailpiece:Ebony on Brass
- Bridge:Adjustable Ebony Bridge
- Tuners:Pingwell RM-1271 GVR 3+3
- Knobs:Amber Speed Knobs
- Neck Pickup:Kent Armstrong HPAG-1
- Bridge Pickup:Kent Armstrong HPAG-1
- Pickup Height:3/32"
- Pickup Frame:Black Plastic
- 3 Way Switch:Switchcraft 12120X
- Switch Tip:Switchcraft Amber P2912
- Capacitors:0.022μF
- Potentiometers:5 CTS 500k Linear Taper
- Output Jack:Switchcraft
- Strings:D'Addario NYXL .012 - .052
- Case:Hardshell Case
Show more +
Choose your finish
Learn More
Have a question or want to know more about the AR403CED? Please provide your information below and we’ll be in touch shortly.
Vintage Gets a New Varnish
With a look, style, and sound all of their own, the Antique Varnish guitars and mandolins use the same world class varnish as our violins.
Our Artists
Making instruments for a large variety of artists in a wide range of genres is a labor of love. Nothing makes us happier than seeing our favorite artists enjoying our instruments as much as we do.
